可DMX & RF調光記憶LED驅動器

Can DMX & RF memory that move light LED drive

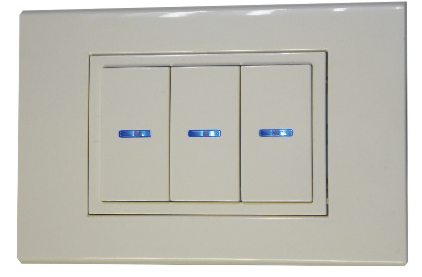

面板式調光模組    Panel call light module
panel module
寬 9cm 高 2.8cm 深 5cm
Width  9cm  Height 2.8cm  Depth 5cm

三按鍵調光面板-LED調光產品系列(600S)、(DM6000)、(UDM3000)就可調整燈光並記憶你想要的亮度及氛圍。

※調光前必須要在燈光完全熄滅時才可進行調光。

操作方式:長按記憶面板任何一個按鍵,此時你所按的按鍵會進入調光循環的狀態。例如:天花燈會由暗到亮分別0-255階調光的比例,鬆開手時,就會記憶在你鬆手時的亮度。

※如果需要再次調光,請務必把燈光都熄滅後再按照以上步驟。

(LED調光產品分別是(600S)、(DM6000)、(UDM3000)

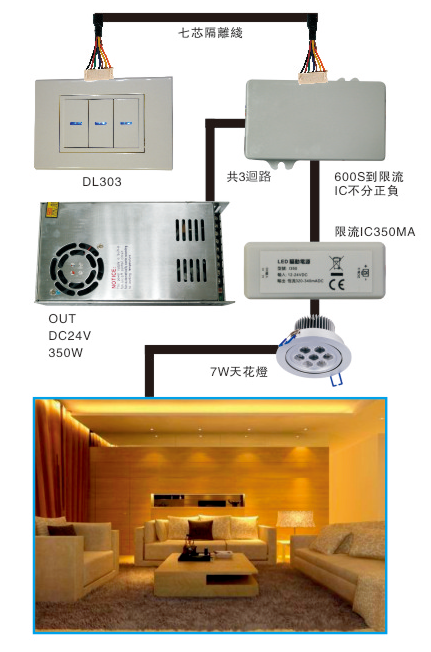

※以上接線方式採用並聯式接法。

※如果驅動大功率燈珠最大功率可達到每迴路80 x 3總輸出240W。

module2

Three keys that move light panel + LED light products

Three button panel – that move light LED light products series ( 600s ) , ( DM6000 ) , ( UDM3000 ) can adjust the brightness of the lighting and memory you want and the atmosphere.

The creation must be in the light dimmer can be completely extinguished.

Operators : long press any memory panel button, when you press the button to enter the dimming cycle. For example : ceiling light from dark to bright respectively 0-255 order in proportion to the dimer, loosen the hand, will the brightness of the memory when you let go.

If you need to move light again, please make sure the lights are out, then according to the above steps ( LED dimming products are respectively ( 600s ) , ( DM6000 ) , ( UDM3000 ).

The above connection mode adopted and chat type connection.

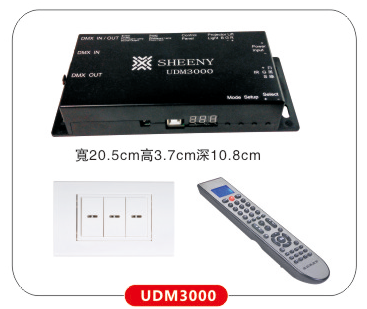

UDM 3000操作說明    The UDM 3000 operating instructions
udm3000
10A驅動器&升降機布幕&LED驅動器DMX及RF雙向控制系統
產品特色
  • 內建12種燈光情境
  • 調光可達三迴,日光燈開關兩組
  • 可連接一組三迴路調光面板
  • 可學習一頁RF遙控面板模式
  • 可連接投影升降機,還有投影ON/OFF控制轉
  • 可連電動布幕
  • 可連接一組電動窗簾
  • 可學習4個組紅外線,發射訊號轉投影機及遮幕反黑訊號
  • 可學習4組RF長距離訊號
  • 可連接1組DMX512訊號
  • 安裝簡易,工程指導
以上全部控制方式,可通過或RF雙向控制皆可。如果控制場燈大功率1W最多控制86W,可以調光及亮度熱鍵記億功能。
Product Features
Built-in 12 kinds of lighting situation
Dimming can be up to three times, two groups of fluorescent lamp switch
Can connect a set of three loops that move light panel
Can learn one page mode RF control panel
Projection elevator can be attached
The electric curtain
A set of electric curtain can be attached
Can learn four infrared lights
Can learn four groups of RF signals over long distances
1 set of DMX512 signal can be attached Easy to install, the project instruction
