DMX 512 矩陣環境控制器

Environment Controller

產品特色    Product Features
rld900
寬 12.5cm 高 3.9cm 深 8.2cm
Width  12.5cm  Height 3.9cm  Depth 8.2cm

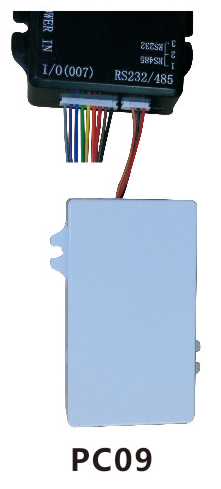

pc09
*需要獲得專用通信協議並與PC-09搭配運用(專案規劃)
*無線雙向通訊傳輸RF433.92
*設定方式:直接使用無線遙控器輸入設定
*接線方式:配合專用電流線圈,偵測範圍待機電源:<5W啟動
*電源:>10W
Need to get special communication agreement and use with PC-09(project planning). MHz Wireless two-way RF 433.92MHz transfer. Setting way:using wireless remote control to output setting. Connecting way:operate with special electric current cord, detecting power under stand by mode<5W turn on power>:10W

輸出/輸入各1組DMX512優先訊號選擇,可控制512個迴路,透過1組DMX512信號輸入設定通道位址,下一個通道再輸入255階,利用第512通道及255,可達到控制99個檔案矩陣變化。

可透過(URT2100)及(PC09)利用RF433訊號來控制(RLD900)達到99種情境模式,開關燈及調光、窗簾控制、投影開關機、任何全採LED與電腦動靜態情境變化無線射頻(KY009E)遙控系統,透過(RF)433頻率之方式而遙控RLD900,並可控制多項電子設備及解碼盒。

遙控器資訊碼與(PC09)對頻、以433頻率控制檔案內容來達到情境變化。

-有線架構,RS-232與RF雙向、WIFI無線多頻通訊,兼具穩定、彈性運用。

-適用於大型建物、飯店、酒店、婚宴會館。

-我們提供~優質無線設計、任意模組運用。

我們提供以RF、IP網路與控制透過URT2100傳送資料回饋訊息變化達到即時更新情境狀態可在電腦、iPad、APP手機、雙向訊息傳遞可讓你在螢幕上了解即時更新之內容。

The output/input a set of DMX512 signal priority choice, can control 512 circuits through the DMX512 signal input set channel address 1 group, the next channel to enter the 255 order, using channel 512 and 255, the matrix changes can achieve control of 99 files. Through (URT2100) and (PC09) use RF433 signals to control (RLD90) of 99 kinds of situation model, open to turn off the lights and dimmer switch machine, curtain control , projection. Any clean mining LED dynamic and static situation change with computer radio frequency (KY009E) remote control system through the methods of 433 frequency remote control RLD900 and can control a number of electronic devices and the decoder box.

Frequency remote consultation code (PC09) to 433 frequency control file content to achieve the situation changes.

You think out ideas to let SHEENY RLD900 bring you the most SMART wireless intelligent life has the most complete system of products.



-Elastic module, to avoid binding function increase the cost, when the province, money spent on edge.

-wireless architecture, installation or expansion is very convenient, suitable for the size of the space environment.

-cable structure, the RS-232 and WiFi multi-frequency wireless communication, RF both stability and flexibility is applied

-Suitable for large buildings ,restaurants, hotels banquet halls…

-expansion of compatible, old and new period, the prices are different positioning products are compatible with each other.

-functional diversity, to explore the use of higher order waiting.

-The sitting room, restaurant, office, conference room, etc…The operator can follow one’s inclinations to manipulate situations.

-even opened the door, the light turns dark… Let SHEENY RLD900 spontaneously without excuse me automatically.

-We provide quality wireless design. Use any mould.



We provide to RF, IP network and control transfer through URT2100 feedback message status changes to update situation in the computer, the device, the APP phones, two-way message can let you know on the screen to update content.
